In today's modern industrial landscape, power electronics play a critical role in enabling efficient energy conversion, precise motor control, and high-performance renewable energy systems. At the core of many of these systems lies the IGBT cold plate—a high-efficiency semiconductor device widely used in electric vehicles, industrial motors, solar inverters, and various other power-heavy applications. However, as their performance increases, so too does the heat they generate. Excessive heat can hinder performance, reduce lifespan, or even lead to catastrophic system failures.
To mitigate these thermal challenges, one essential technology has emerged as a key enabler of IGBT efficiency and longevity—the IGBT cold plate.
At Tone Cooling Technology Co., Ltd., we specialize in advanced cooling solutions engineered to meet the evolving demands of power electronics.
What Is an IGBT?
An IGBT (Insulated-Gate Bipolar Transistor) is a semiconductor device that combines the high current-carrying ability of a bipolar junction transistor (BJT) with the ease of control of a metal-oxide-semiconductor field-effect transistor (MOSFET). IGBTs are particularly valued for their high efficiency and fast switching capabilities.
Typical applications include:
- Motor drives
- Electric and hybrid vehicles
- Renewable energy systems (e.g., solar and wind inverters)
- Uninterruptible power supplies (UPS)
- Industrial automation
As IGBTs handle larger voltages and more power, they also generate considerable heat. Without effective thermal management, these devices can overheat, leading to degradation or failure.
This is where IGBT cold plates come in.

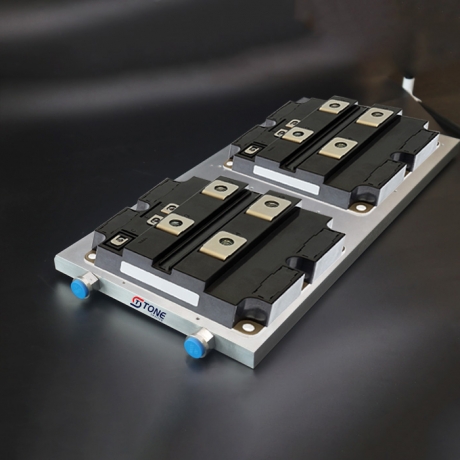

What Is an IGBT Cold Plate?
An IGBT cold plate is a customized liquid-cooled heat sink engineered to draw heat away from the IGBT module, transferring it to a coolant fluid (typically water or a water-glycol mixture). This solution offers highly efficient thermal management, outperforming traditional air cooling or passive heat sinks, especially in high-power or compact applications.
Key Components of an IGBT Cold Plate
- Base Plate: Usually made of aluminum or copper for high thermal conductivity.
- Cooling Channels: Internal pathways or microchannels for fluid movement.
- Inlet/Outlet Ports: Interface for coolant input and output.
- Mounting Surface: A flat, smooth area designed for direct IGBT module contact.
- Sealing Mechanisms: O-rings or gaskets to prevent leaks.
How It Works
- Contact: The IGBT module is mounted directly onto the cold plate, ensuring excellent thermal contact.
- Heat Transfer: When the IGBT operates, generated heat is absorbed by the baseplate and transferred into the cooling fluid.
- Fluid Circulation: The heated fluid exits the cold plate through the outlet and is cooled in a chiller or heatsink before recirculating.
This active cooling method allows for consistent temperature regulation, reduced thermal strain, and higher performance.
Why Is Thermal Management in IGBTs So Crucial?
Proper thermal management is not just a recommendation—it is a necessity in power electronics. Let's explore the reasons why IGBT cooling is mission-critical.
1. Efficiency
As temperatures increase, the electrical conductivity and switching performance of IGBTs deteriorate. A well-cooled IGBT retains its efficiency, translating into lower power losses.
2. Reliability
Thermal cycling and hotspots can significantly reduce a semiconductor's lifespan. By maintaining a uniform operating temperature, IGBT cold plates increase reliability over the years of operation.
3. Compact Design
Air cooling solutions often necessitate larger radiators or heat sinks. Cold plates enable much more compact footprints, ideal for EVs or space-constrained industrial cabinets.
4. Compliance & Safety
Overheating can lead to system errors or even fires. Proper cooling ensures systems remain within safe operating parameters, supporting compliance with industry regulations.
IGBT Cold Plate Design Considerations
Designing an effective IGBT cold plate isn't as simple as placing a pipe through metal. Numerous factors must be considered for optimal thermal performance and operational compatibility.
1. Material Choice
- Aluminum: Lightweight and cost-effective, suitable for general industrial use.
- Copper: Higher thermal conductivity, ideal for high-performance or high-density applications.
2. Channel Configuration
- Serpentine: Simple and cost-efficient but may create uneven flow.
- Parallel/Multi-pass: Better flow uniformity and pressure drop control.
- Microchannel: Provides superior heat exchange, often used in high-power density environments.
3. Surface Flatness and Contact Resistance
- Proper machining and surface treatments are necessary to ensure high thermal contact with the IGBT module.
4. Pressure Drop and Flow Rate
- Higher flow rates usually yield better cooling but may require stronger pumps and affect system costs.
5. Corrosion Resistance
- Coatings or materials that resist corrosion (e.g., anodizing, nickel plating) will extend service life, especially when using water-based coolants.
All these elements factor into how well an IGBT cold plate will perform in a given environment.
Applications of IGBT Cold Plates in Modern Industry
As industries embrace energy efficiency and automation, the integration of IGBT cold plates has expanded across many sectors. Here's a look at how different industries are benefitting:
1. Electric Vehicles (EVs)
In EVs, power inverters and motor drives rely on IGBTs, which must remain cool under variable load driving conditions. Cold plates provide the compact, lightweight, and efficient cooling needed for battery-driven platforms.
2. Renewable Energy Systems
Solar inverters convert DC from PV panels to usable AC. This conversion generates considerable heat, especially in high-output systems. IGBT cold plates help maintain consistent output and efficiency by preventing thermal shutdowns.
3. Industrial Automation
In sectors like robotics and CNC machining, IGBTs allow precise control of motors at high power. Cold plates help maintain thermal stability for uninterrupted, high-speed operation.
4. Railway Traction and Heavy Equipment
High-power drives in trains or construction equipment generate immense heat under continuous load. Efficient IGBT cooling is vital to prevent breakdowns in these mission-critical systems.
5. Data Centers and UPS Systems
Uninterruptible Power Supplies rely on IGBTs for switching and conditioning backup power. Cold plates mitigate the thermal risks of high power density in rack-mounted systems.
Benefits of Using IGBT Cold Plates in Your System
At Tone Cooling Technology Co., Ltd., we emphasize performance, efficiency, and reliability. With our advanced IGBT cold plate designs, customers can expect:
- Reduced thermal resistance
- Improved system uptime
- Compact cooling solutions with high heat dissipation
- Custom engineering specific to your IGBT or power module model
- Long-term cost savings due to reduced maintenance and extended lifespan
Also Read: Benefits of IGBT Cold Plates in Power Electronics [Infographic]
Tone Cooling Technology's Approach
We at Tone Cooling Technology Co., Ltd. provide custom IGBT cold plate solutions tailored to diverse industrial needs. Our engineering team works closely with clients to design, prototype, and manufacture cooling systems that align with their thermal, dimensional, and performance requirements.
Why Choose Us?
- Decades of engineering experience in liquid cooling technology
- State-of-the-art CNC equipment and thermal simulation tools
- Strict quality control and pressure testing for leak-free operation
- Fast turnaround for prototypes and scalable production
Whether it's a standard cold plate or a one-of-a-kind design, our mission is to empower your performance through efficient thermal management.
In an increasingly electrified world, where performance, reliability, and efficiency set the bar for success, IGBT cold plates are becoming indispensable components. They provide the thermal backbone for industries embracing cleaner energy, automation, and high-power applications.
Frequently Asked Questions (FAQ)
Q1: How do I know if my system needs an IGBT cold plate?
If your existing power electronics exceed 100W of thermal output and suffer from thermal throttling or failures, a cold plate could significantly improve reliability. Systems operating in tight enclosures or high-ambient environments are prime candidates.
Q2: Can I use the same cold plate for different IGBT modules?
Not always. Different module sizes, mounting patterns, and power ratings require customized cold plate designs to ensure proper thermal contact and performance.
Q3: What coolant should I use with an IGBT cold plate?
We often recommend deionized water or a water-glycol mixture for most systems. The choice depends on your temperature requirements and environmental conditions.
Q4: How long does an IGBT cold plate last?
With proper maintenance and corrosion-resistant materials, an IGBT cold plate can last over 10 years. Regular checks and coolant replacements enhance longevity.
Q5: What industries benefit the most from IGBT cold plates?
Key industries include electric vehicles, renewable energy, automation, transportation (railway), and high-performance computing, among others.
Q6: Does Tone Cooling offer custom solutions?
Absolutely! We specialize in customized IGBT cold plates to meet unique thermal and structural system requirements.
